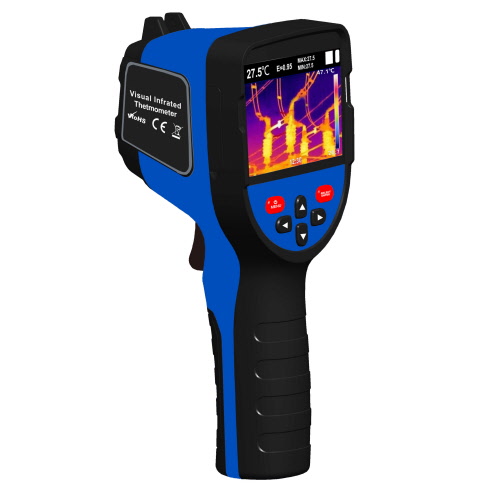

Thermal Imager 899

Thermal Imager IR-899
SOUTHGEOSYSTEMS
IR899-A300435
kg
Add to cart
  • Description
  • More
  • Specifications

Thermal Imager IR-899, Mainly used in the power industry, industrial testing, fire safety, petrochemical, automotive testing, aerospace, building energy saving, transportation applications, scientific research and development, agricultural ecology

Mainly used in the power industry, industrial testing, fire safety, petrochemical, automotive testing, aerospace, building energy saving, transportation applications, scientific research and development, agricultural ecology
Thermal Imager IR-899
Thermal Imager-EN

IR-895/898/899 Thermal imager camera

IR-895IR-898IR-899
Infrared image resolution160×120220×160320×240
Infrared image resolution300,000 pixel
Display screen3.5” TFT color display
LCD resolution320×240
Field angle35°×26°
Shortest focus length0.15m
Thermal sensitivity0.07℃
Temperature

range

-20 to 450℃/

-4 to 842℉

-20 to 300℃/

-4 to 572℉

Accuracy±2% or reading ±2℃/3.6℉
EmissivityAdjustable from 0.01 to 1.00
Frame rate of thermal images9Hz
Wavelength coverage8μm to 14μm
Focus modeFixed
Color paletteRainbow, iron oxide red, cold color,black & white, white & black
Storage capacityBuilt-in 3G (above 20 thousand image stored)
File formatJPG
USBType-C
Battery18650 battery（Size:∮18.5×69mm）
Working time2-3 hours
Automatic power-offSelectable: 5 minutes/20 minutes/ not power off automatically
Language,English、Chinese、Italian、German
size221×96×88mm
Weight374g
Work temperature0℃ to 45℃/ 32 to 113℉
Storage temperature-20℃ to 60℃/ -4 to 140℉
Relative humidity＜85%RH
