Planimetro Digital QCJ-2000
SOUTHGEOSYSTEMS
QCJ2000-A400360
kg
Incluir en la cesta
  • Descripción
  • Mas Info
  • Especificaciones

Planimetro Digital QCJ-2000 Measuring Area:

SOUTHGEOSYSTEMS | KOLIDA

Digital Planimeter QCJ-2000Model QCJ-2000 Type Roller Measuring Range Width: 300mm;Length: unlimited Accuracy ±0.2%Display LCD,16Digits Power Supply AC:220v,or 110V 50Hz; DC:6V,built-inrechargeable Battery InstrumentDimensions: 260mm×180mm×40mmNetWeight: 1.25kg(w.Carrying Case) Standard Accessories AC Adaptor, Plastic Carrying Case

Digital Planimeter QCJ-2000

Drafting & Mapping Equipment
-Pocket Stereoscope (PS)
-Mirror Stereoscope
-Drafting Machine
-Digital Planimeter
-Optical Plane-Table Alidade
-Pantograph (PTG)
-Flexible Curve (FLX)
-Parallel Scale (PAS)
-Drafting Tube (DRT)

Planimeter-En

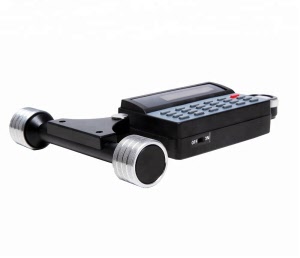

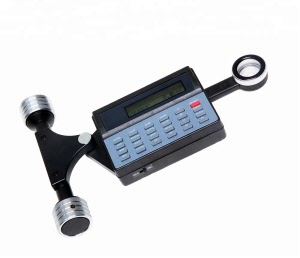

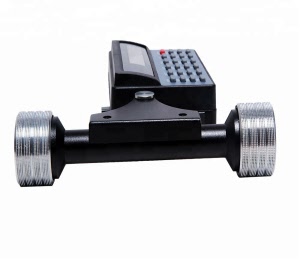

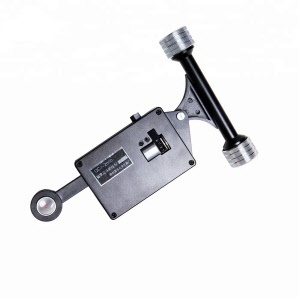

Digital Planimeter

Model QCJ-2000
Type Roller
Accuracy ± 0.2%
Measuring Range Width: 300mm; Length: unlimited
Display LCD, 16 Digits; Size: 64.5× 13.8
Power Supply Input: Adaptor: AC: 100~240v, 50Hz
Output: DC: 6v, Ni-H rechargeable Battery (built-in)
Battery Life: up to 10000 charging times

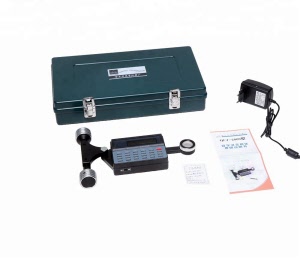

Standard Accessories AC Adaptor, Plastic Carrying Case, User Manual
Packing Details


 		 Instrument Dimensions: 260mm× 180mm× 40mm
N. W.: 1.25kg (w. Carrying Case)
10pcs per Carton; 22kgs per Carton;
Size per Carton: 0.09CBM (90cm× 23cm× 44cm)
