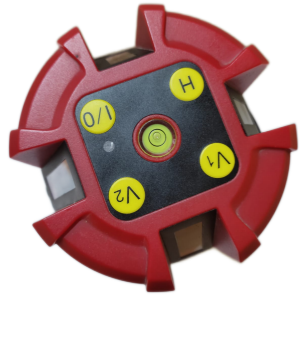

Multi Line Laser YL 514
SOUTHGEOSYSTEMS
YL514-A40058
kg
Aggiungere al carrello
  • Descrizione
  • Altri Dettagli

Multi Line Laser SGS YL 514, Proietta 4 linee verticali, una linea orizzontale e un raggio a piombo. Croce laser a soffitto e parete. Allarme autolivellante, visivo e acustico quando è fuori livello 360 ruotabile e anche regolabile in livello. Il basamento è regolabile in altezza in grado di essere collegato al treppiede o al treppiede dell'elevatore tramite filettatura da 5/8 "

SOUTHGEOSYSTEMS | KOLIDA

4V1H1D

Features:
*Magnetic damping compensator to ensure more quick self-leveling time.
*Bright and high visible laser beams with 10mw or 15mw laser diode
*If the unit exceed the self-leveling range, the laser line will be shut off with warning signal.
*The unit will emit one horizontal , 4 vertical line with plumb dot, the 4 vertical line will be acrossed
  on the ceiling at 90º.
*With Indoors/Outdoors switch function ,laser datector can be used for outdoors operation.
*Built-in locking system to lock the compensator when in transportation to avoid vibration.
*Charge connector fuction
*Main unit can rotate 360° on the base with 1° scale instruction

Specification:                                                                                                          ●Laser Source:  10mw laser diode                                                                       ●Laser fan angled≥130°
●Laser safey class:  Class II
●Horizontal Accuracy:  ±1mm/10m
●Vertical Accuracy:  ±1mm/10m
●Down piont Accuracy:  ±0.5mm/0.5m
●Top Accuracy:  Leveling ±1mm/3m
●Self-leveling range:  ±4°
●Self-leveling time:  ≤5 "
●Operating Arrange:15m
●Operating Arrange with detector:30m
●Power supply:  3xAA size alkaline batteries
●Operation time:  >10 hours
●Unit dimension:ϕ145x185mm
●Weight:  1.1kg
