LiDAR Mini V100 Sistema leggero

SZT-V100
kg
  • Descrizione
  • Altri Dettagli

Sistema leggero LiDAR Mini V100

UAV-based and SUV-based are available for this model laser scanning system

VIDEO  v100 mobile mapping system

100 m

Laser Measurement Range



0.1to 0.4

Angle Resolution(Horizontal/Azimuth)

1.5 kg

Net Weight(w/o camera)

5 cm

Relative Accuracy



360°

Field Of View(Horizontal)

0.005/0.01m,

RMS

Post-processing Position H/V

903 nm

10-80 m

Recommended scanning height AGL

Light Detection and Ranging (LiDAR) is a proven approach to creating fast and accurate terrain models for applications in many types of industries. The technology is based on a scanning laser combined with both GNSS and inertial technology to create a three dimensional set of points (point cloud),  and airborne lasers can create a number of mapping products for clients, such as, DEM,DSM, Contour line, Vectorized map, etc.

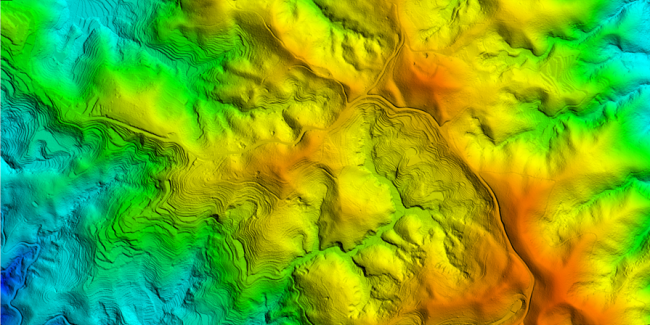

DEM

DEM

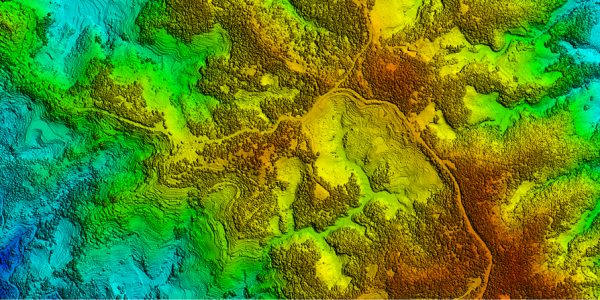

DSM

DSM

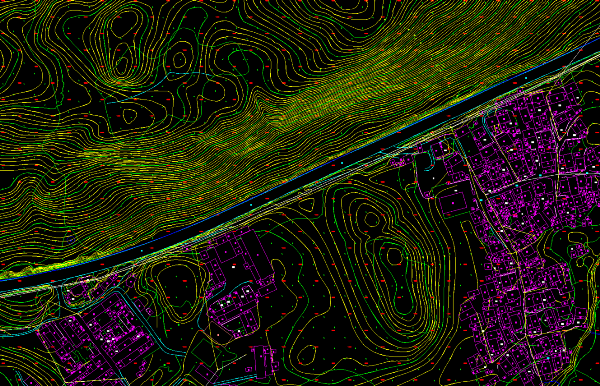

DLG

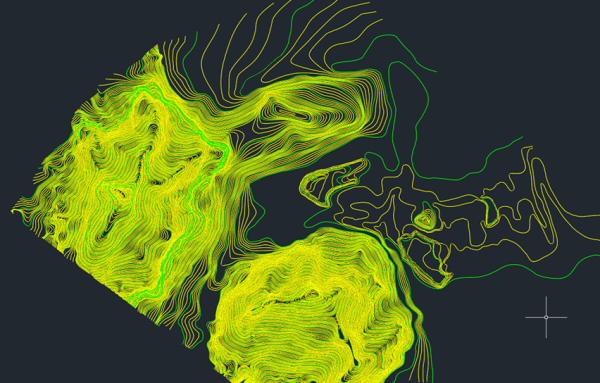

Vectorized map Contour line

V100

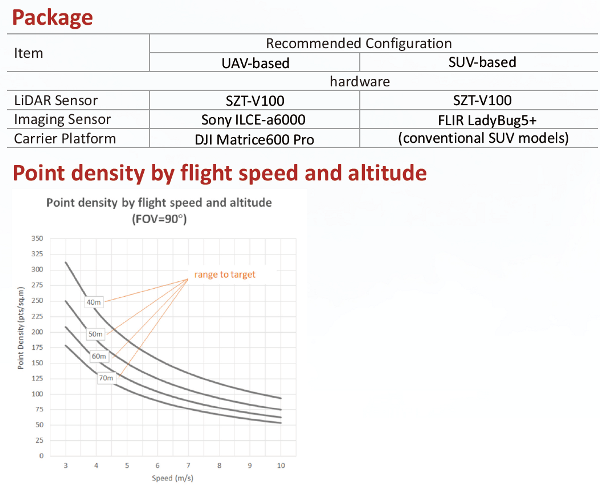

Package

At present, we can provide V100 LiDAR measuring sytem based on UAV or SUV.

V100 package

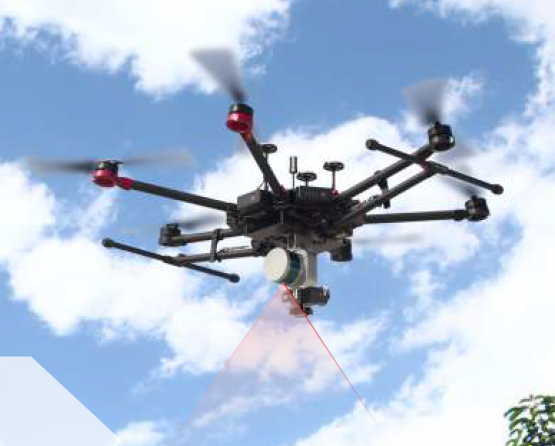

UAV-Based

UAV-Base LiDAR sytsem is the most popular laser scanning sytsem at present, we have done a plenty of test with this system in the projects.
