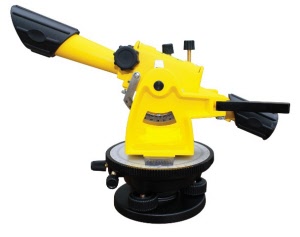

Level Transit TL02
SOUTHGEOSYSTEMS
TL02-A40095
kg
Add to cart
  • Description
  • More

Optical Level Transit SGS Level Transit TL02, 20x magnification Level designed specially for reading measurements on a slope and basic aligning

SOUTHGEOSYSTEMS | KOLIDA

Optical Level Transit SouthGeoSystems Level Transit TL02 Versatile 22x magnification Level designed specially for reading measurements on a slope and basic aligning Working range

60m Accuracy range 3mm/30m

Image: erect

Magnification 22x

Shortest focusing distance 1.2m

Field of view 1°20′

Horizontal circle yes

Graduation 1°

Model



TL002

Magnification



20×

Objective Aperture



22mm

Image of Telescope



Erect

Resolution Power



6.5"

Min. Focus Distance



1.5m

Field of View



1°

Multiplication Constant



100

Sensitivity of Plate Level



7'/2mm

Circle Graduation



1°/360°

Vernier Graduation



NA

Tilting Angle



±30°

N.W. of Instrument



1.75kgs

Instrument with Case



2.95kgs

Connected with Tripod



5/8 " ×11

Recommended Tripod

Light-duty Tripods

Packing Details





Plastic Carrying Case
