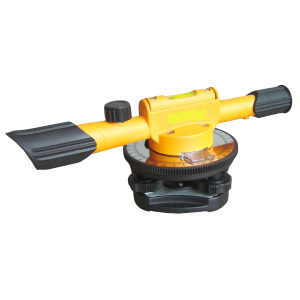

Level Transit TL01
SOUTHGEOSYSTEMS
TL01-A40074
kg
Add to cart
  • Description
  • More

Level transit SGS This Optical Transit Level combines all the features of a traditional Level with the added feature of being able to slant to measure points. With its 20x magnification your work will be accurate and created with a versatile time saving tool.

SOUTHGEOSYSTEMS | KOLIDA

Optical Level Transit SouthGeoSystems Level Transit TL01 Versatile 22x magnification Level designed specially for reading measurements on a  basic aligning Working range

60m Accuracy range 3mm/30m

Image: erect

Magnification 22x

Shortest focusing distance 1.2m

Field of view 1°20′

Horizontal circle yes

Graduation 1°

Model



TL01

Magnification



22×

Objective Aperture



22mm

Image of Telescope



Erect

Resolution Power



6.5"

Min. Focus Distance



1.5m

Field of View



1°

Multiplication Constant



100

Sensitivity of Plate Level



7'/2mm

Circle Graduation



1°/360°

Vernier Graduation



   60°

Tilting Angle



±30°

N.W. of Instrument



1.75kgs

Instrument with Case



2.95kgs

Connected with Tripod



5/8 " ×11

Recommended Tripod

Light-duty Tripods

Packing Details

4pcs per Carton; 15kgs per Carton;
Dimensions per Carton: 0.07CBM (= 45cm×35cm×47cm)



Plastic Carrying Case
