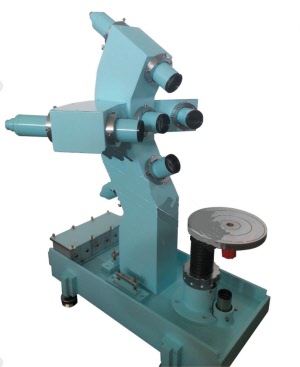

Optical Collimator SGS F300 5T

SOUTHGEOSYSTEMS
F3005T-A2501799
kg
  • Description
  • More

F300-5T is for calibration and maintenance of the autolevel,theodolite,total station and laser/optical plummet.

Table Style Collimator. 5+1Tubes.One Tube is Under The Platform for Plummet Calibration
Product Description

TABLE STYLE COLLIMATOR. 5+1TUBES.ONE TUBE IS UNDER THE PLATFORM FOR PLUMMET COLIBRATION.



F300-5T is for calibration and maintenance of the autolevel,theodolite,total station and laser/optical plummet.



*Main Technical Parameters:



  Tube length: 355mm

  Tube focus: 300mm

  Tube Aperture: 45mm

  Resolution: 3"

  Angle of field of view: 10°20'

  Accuracy(Reticle's division value): 30"

  Tubes position: Horizontal(0°,30°,-30°),elevation(30°) and depresion(30°)

  Adjusting range of the tubes: Horizontal:≥20´, Vertical:≥20'

  Magnification: 5.7~7X

  The shortest target of the level tube: 2m

  The far target: ∞



  Lifting range of the lifting platform: ≥200mm

  Diameter of the platform: 200mm



 Power supply for tube: 4.5~6V,2.1W

  Switch power: 1~10A

  Lighting source: cold light (with adjustable intensity), green



                 Shipment package:1Wooden cases,110kgs,

                  Package dimension: 81x75x115cm
