Android Total Station

KOLIDA
KTS552R15-A2252390
kg
Add to cart
  • Description
  • Future

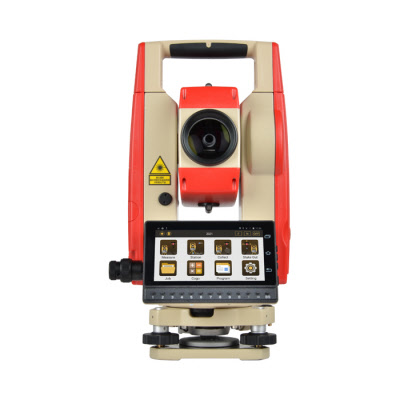

Android Total Station KTS-552R15. The first Android Total Station kolida kts 552 features open interface.

Android Total Station KTS-552R15. The first Android Total Station kolida kts 552 features open interface, available for any 3rd party software based on your own request 5.0 Inch captive screen with multi-touch technology for quick and smooth operations. Iconic user interface, offers a smooth and flashing working experience. Behind every feature Kolida Instrument has put in a lot of efforts to optimize the algorithm

VIDEO Easy for Training and Learning

1500 m

Reflectorless Range.

5 Inches Screen

1280 * 720, High Clarity.

4G+Wifi+Bt

Communication.

8 * 1.5GHz CPU | 3+32GB Memory
KTS552R15-A



More Powerful than Ever | More Versatile than Ever!

KTS-552 Android Total Station is equipped with an 8 -cores 1.5GHz CPU, 3 + 32 GB memory, the system works much smoother and calculate much faster than old generation equipment, it also performs better when importing large size base map or design files.

    Video:

   KTS552R15-B

Simple and Upgradable!
   KTS-552 is powered by Android OS, easy to learn, combined with Kolida SurveyStar field software, it offers a simple and productive way of working

Moreover, user can develop and install their own application into the system, to meettheir special work demand...

   KTS552R15-c

Measures Longer and longer | Improvement Never Settles!

How could we lift the ranging cabability to a new level of 1000/1500m? The three key factors are "Dual-light Source Distance Measuring technology", optimization of the signal-to-noise ratio, a more stable objective lens system.

Video: 1000m and 1500m Non-prism measurement in cloudy weather


   KTS552R15-D

A New Step to be More Accurate | Innovation Never Stops!

Every hard working surveyor deserves a higher precision than before.

Four innovations have been realized in our newly designed optical system to achieve this goal: "Focal Length Compensation Mirror", "Fully sealed emitting laser circuit", "Less reflectors in optical part", "the 4th Generation EDM CPU".



   KTS552R15-E

Practical Survey Program

Various of surveying programs onboard allow surveyors to complete their tasks directly in the field: Resection, Point to Line, Free Station, Point Collect, Distance Offset, Plane Offset, Column Offset, REM, Line & Point, Line & Angle,  Point Setout, Reference Line, Line Setout, Arc Setout, Reduction, XYZ Calc., Inverse, Area & Girth, Dist. Conversation, Angle Conversation, Average, Triangle Calc., Calculator…

   KTS552R15-F

Intuitive and Dependable

With the 5 inches, 1280 * 720, high clarity touch screen, KTS- 552 can turn complex data numbers into realistic graphic displays. Measuring on basemap, more intuitive and less error happens.

More information and buttons can be displayed in one screen, the better visuality makes workflow easier and shorter..

   KTS552R15-G

Easy for Training and Learning



Thanks for the Air mirroring function of Android OS, now user can share total station screen to other devices, to make demonstration/ training more intuitive and productive.
