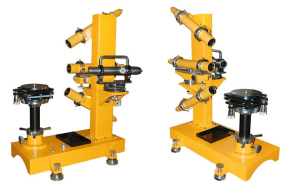

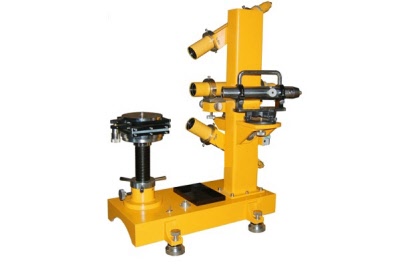

Colimador Optico W420-4A

SOUTHGEOSYSTEMS
W4204A-A2505199
kg
  • Descripción
  • Mas Info

Optical Collimator W420-4A,Colimador Digital JYJZ,Colimador Digital TSJZ-1,Colimador para estaciones totales, colimador para teodolitos,Colimador Optico para estaciones totales Niveles y Teodolitos, colimador Digital para niveles laser, colimador Digital para Estacione totales Laser

Colimador Optico W420-4A, Colimador óptico W420-4A, colimador para estaciones totales, teodolitos y niveles ópticos
Resolution: 3"

  Angle of field of view: 10°20

  Accuracy(Reticle’s division value): 30"

  Magnification: 5.7~7X



  The shortest target of the level tube: 2m

  The far target: ∞

  The micro adjusting range of the front/back horizontal tube: 5"

      Horizontal: ≤10",

      Vertical: ≤10"



  Tubes position:

  Horizontal(0°,20°),elevation(30°) and depresion(30°)



       LINE ERROR OF THE FOCUS TUBE:≤0.005



          Level accuracy:

               Round level(On the foundation of the front column): 8"/2mm,

               long level(On the front/back horizontal tube):20"



           Lifting range of the lifting platform: ≥320mm



       Power supply for tube: 4.5~6V,2.1W

       Switch power: 1~10A



        Lighting source: cold light (with adjustable intensity), green



            Shipment package: 3wooden cases,140kgs,0.5cbm
