Collimatore Ottico SGS F420 3T

SOUTHGEOSYSTEMS
F4203T-A2501199
kg
  • Descrizione
  • Altri Dettagli
  • Specificazioni

Collimatore Ottico SGS F420 3T

Collimatore Ottico SOUTHGEOSYSTEMS F420 3T, Strumento indispensabile per Calibrare teodoliti, stazioni totali, livelli ottici e digitali

Product information

1.1This model of equipment adopts totally two collimator tubes which have the focus of 550 and been designed with plunge angle and collimation horizontal angle.

1.2The collimator tube is equipped with a reticle with the precision 30", which can significantly improve the inspection precision.

1.3The collimator tube is equipped with up/down and right/left tuning device, therefore easy for

customers’ usage, installation, commissioning and inspection.

1.4The collimator tube adopts the latest long-life “cold” light source, which intensity may be

tuned according to customers’ requirements and indoor luminance. The source produces viridescent lights, which are comfortable for seeing.

1.5On the lifting platform, the threaded rod allowing 26cm lifting range runs smoothly and

stably, and with different configuration, enables customers to operate readily and easily.

1.6The foundation is designed and installed with 4 leveling wheel, and at the bottom, 4 round pads can increase the ground force-carrying surface and the stability. The whole platform is available for leveling and moving.

1.7The fixed, integrated instrument center screws on the lifting platform are common in both metric and British systems (two-in-one), and can be combined for checking different foreign

and domestic measuring instruments.

1.8The equipment is designed with small form factor and looks decent and charming. The total weight is 100kg and the equipment stands very firmly

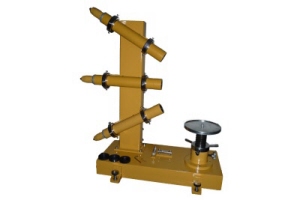

420-3T: Optical Collimator SGS 420-3T

  Optical Collimator System SGS-3 is specially designed for checking Automatic Levels,Optical/Electronic Theodolites, Total Stations and other Optical Levels.
Focal Length   420mm
Effective Aperture   60mm
Field of View   2°30'
Sensitivity of Plate Bubble   10"/2mm
Tube Length   520mm(including power supply)
Graduation Range of Reticule   Horizontal:±30';Vertical:±30'
Min. Graduation   30"
Shortest Stadia   ≤2m
Angle between two Tubes   30°±15'
Operating Height   100mm~260mm
Voltage   input:110 or 220V;Output:3.2-5.0V
Collimator Net Weight   150kgs
Packing Details
