Collimatore Ottico WD550-F1

SOUTHGEOSYSTEMS
WD550F1-A2501100
kg
  • Descrizione
  • Altri Dettagli
  • Specificazioni

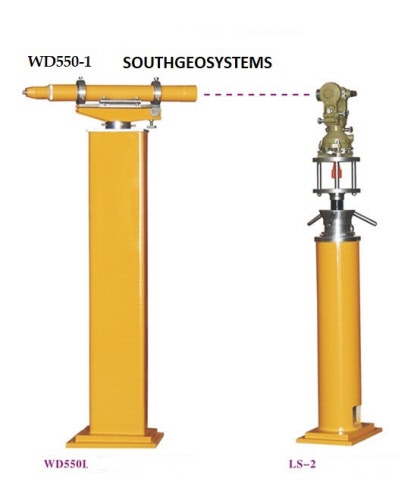

Collimatore Ottico WD550-F1, Combinazione del collimatore WD550-L1 e la colonna LS-2. per Livelli e teodoliti

Combinazione di collimatore WD550-L1 e colonna LS-2, Collimatore per stazioni totali, teodoliti, Livelli e Teodoliti

Main Technical Parameters of Tubes:

  Tube length: 565mm

  Tube focus: 550mm

  Tube Aperture: 57mm

  Resolution: 3"

  Angle of field of view: 10°20

  Accuracy(Reticle’s division value): 30"

  Magnification: 5.7~7X



  The micro adjusting range of the front/back horizontal tube: 5"

      Horizontal: ≤10",

   Vertical: ≤10"  The shortest target of the level tube: 2m

  The far target: ∞


  Power supply for tube: 4.5~6V,2.1W

  Switch power: 1~10A



  Lighting source: cold light (with adjustable intensity), green



Platform adjusting range: 300mm

Platform diameter:180mm

WD550-F1

Main Technical Parameters of Tubes:

  Tube length: 565mm

  Tube focus: 550mm

  Tube Aperture: 57mm

  Resolution: 3"

  Angle of field of view: 10°20

  Accuracy(Reticle’s division value): 30"

  Magnification: 5.7~7X
