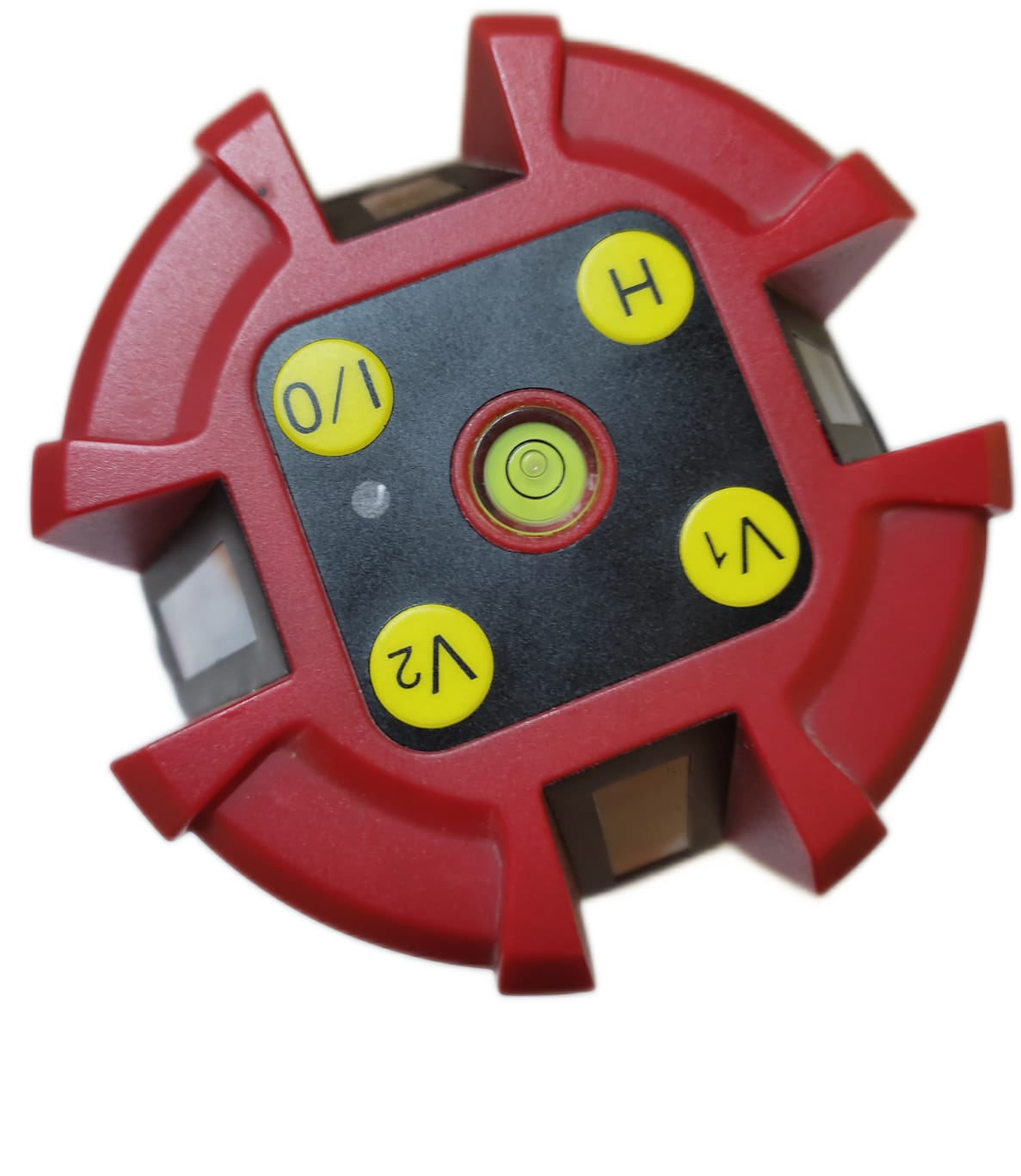

Multi Line Laser YL 514
SOUTHGEOSYSTEMS
YL514-A40058
kg
Add to cart
  • Description
  • More

Multi-line laser SGS, - YL 514, Project 4 vertical lines, one horizontal line and one plumb-down beam. Laser cross to the ceiling and wall. Self-leveling, visual & audible alarm when out of level 360 rotable and also fine-adjustable in level. Tribrach is fine-adjustable in level Able to be connected with the tripod or elevator tripod by 5/8″thread

SOUTHGEOSYSTEMS MEASURING INSTRUMENT

4V1H1D

Features:
*Magnetic damping compensator to ensure more quick self-leveling time.
*Bright and high visible laser beams with 10mw or 15mw laser diode
*If the unit exceed the self-leveling range, the laser line will be shut off with warning signal.
*The unit will emit one horizontal , 4 vertical line with plumb dot, the 4 vertical line will be acrossed
  on the ceiling at 90º.
*With Indoors/Outdoors switch function ,laser datector can be used for outdoors operation.
*Built-in locking system to lock the compensator when in transportation to avoid vibration.
*Charge connector fuction
*Main unit can rotate 360° on the base with 1° scale instruction

Specification:                                                                                                          ●Laser Source:  10mw laser diode                                                                       ●Laser fan angled≥130°●Laser safey class:  Class II●Horizontal Accuracy:  ±1mm/10m●Vertical Accuracy:  ±1mm/10m●Down piont Accuracy:  ±0.5mm/0.5m●Top Accuracy:  Leveling ±1mm/3m●Self-leveling range:  ±4°●Self-leveling time:  ≤5 "●Operating Arrange:15m●Operating Arrange with detector:30m●Power supply:  3xAA size alkaline batteries●Operation time:  >10 hours●Unit dimension:ϕ145x185mm●Weight:  1.1kg
