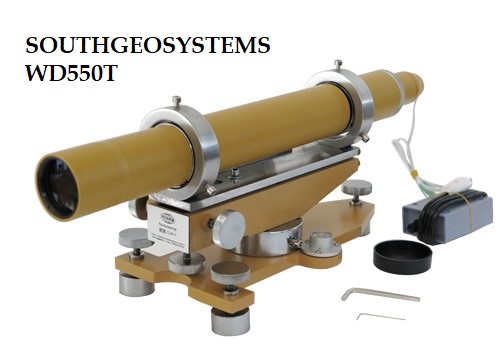

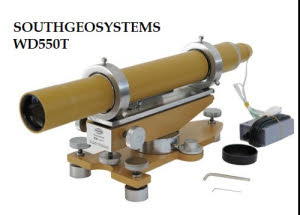

Collimator tube WD550T

SOUTHGEOSYSTEMS
WD550T-A250780
ex Shipping kg
  • Description
  • More

The device includes a F550 tube, micro-adjusting part and a small base

Tubo Colimador WD550-T, Colimador para teodolitos, estaciones totales y niveles ópticos

Main Technical Parameters of Tubes:

  Tube length: 565mm

  Tube focus: 550mm

  Tube Aperture: 57mm

  Resolution: 3"

  Angle of field of view: 10°20

  Accuracy(Reticle’s division value): 30"

  Magnification: 5.7~7X



  The micro adjusting range of the front/back horizontal tube: 5"

      Horizontal: ≤10",

   Vertical: ≤10"  The shortest target of the level tube: 2m

  The far target: ∞


  Power supply for tube: 4.5~6V,2.1W

  Switch power: 1~10A



  Lighting source: cold light (with adjustable intensity), green
